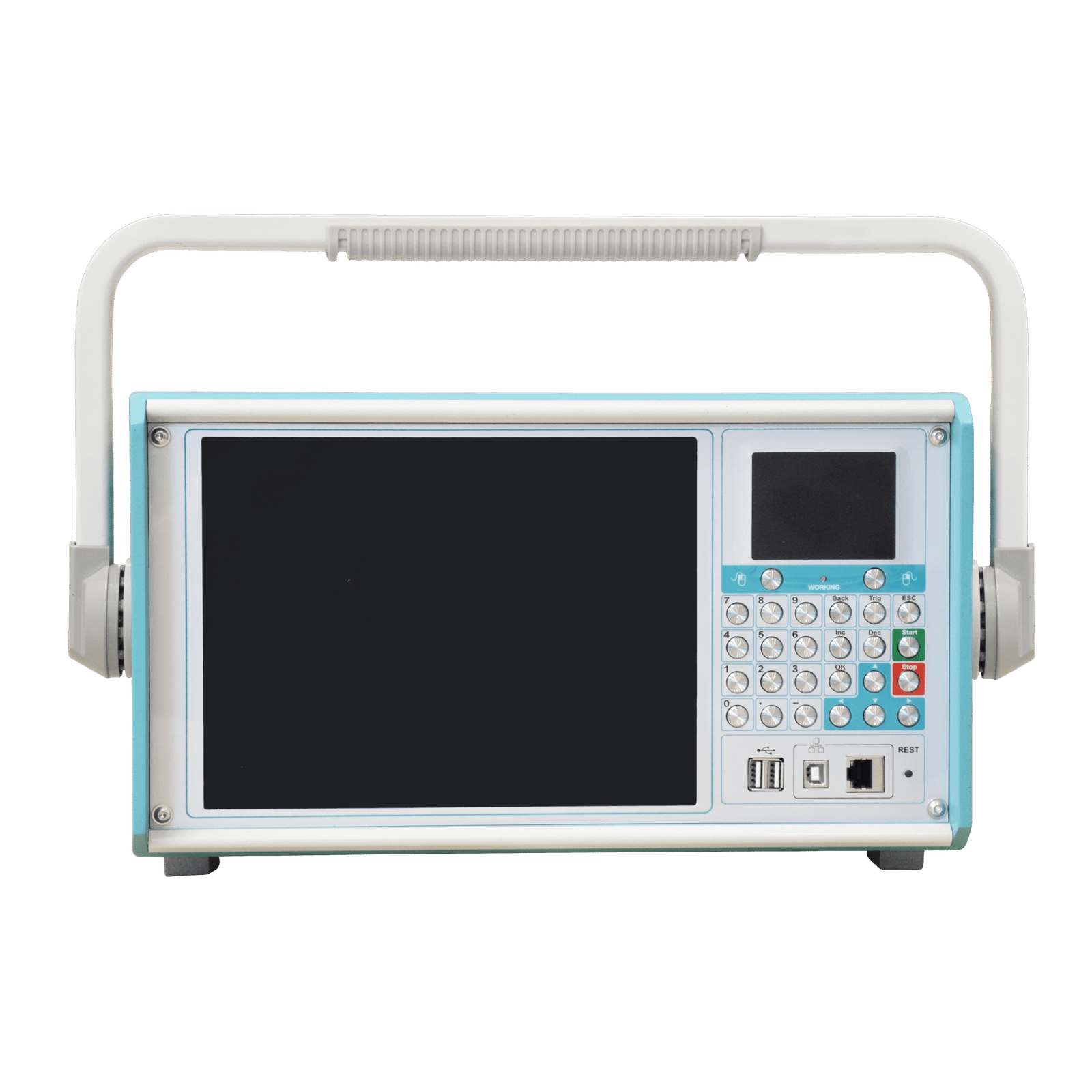

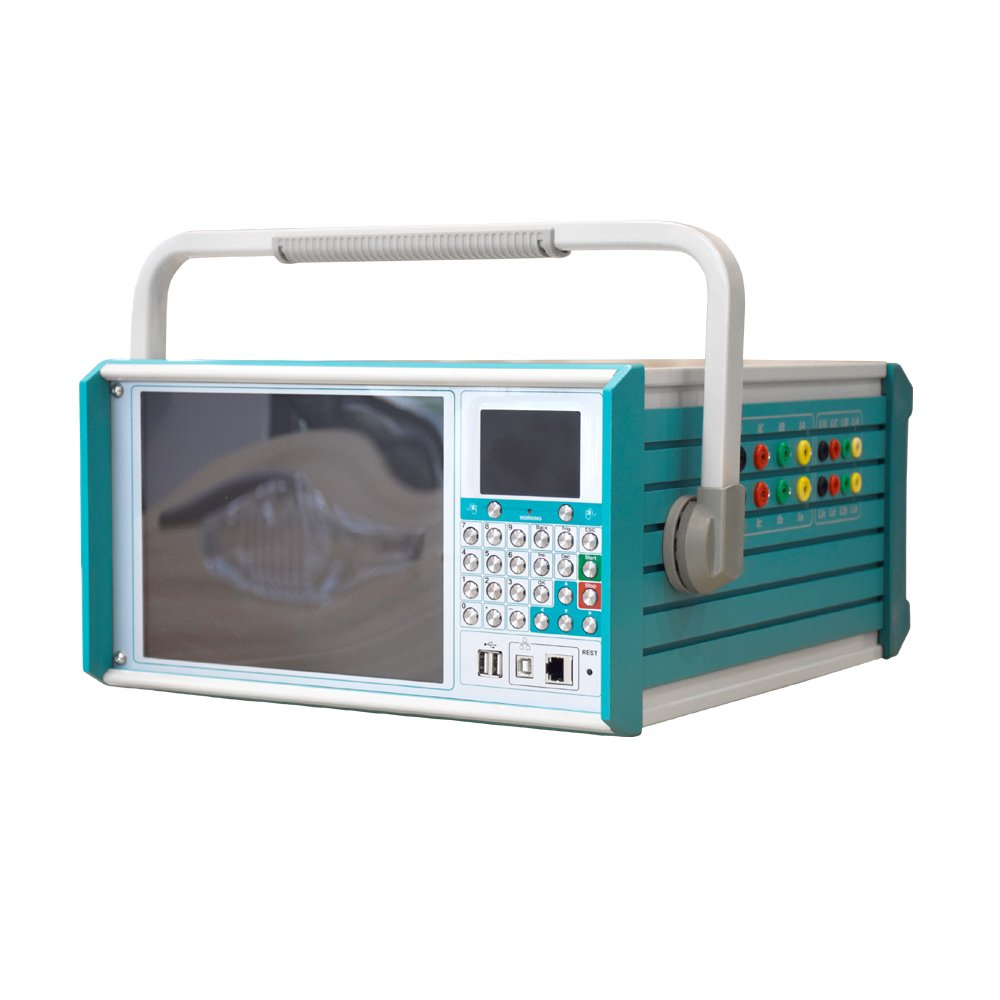

FST-T1200 Six Phase Relay protection tester (Copy)

Meet all on-site testing requirements. This instrument has standard six phase voltage and
six phase current output, which can be used to test various traditional relays and protection
devices, as well as various modern microcomputer protections, especially for transformer
differential power protection and backup automatic switching devices, making testing more
convenient and complete.

AC current source (6 * 30A)
Single phase current output (RMS) 0 – 30A / phase, accuracy: 0.2% ± 5mA
Six phase parallel output (RMS) 0-180A/six parallel outputs with the same
phase

Description

Section 2 technical parameters

  1. AC current source (3 * 30A)
Single phase current output (RMS) 0 — 30A / phase, accuracy: 0.2% ± 5mA
Three phase parallel output (RMS) 0 – 90A / three phase in phase parallel output
Allowable working value of phase current for a long time (effective value) 9.9A
Maximum output power per phase 300VA



Maximum output power of three phase parallel current 800VA
Maximum output allowable working time of triple parallel current 5s
frequency range 0 — 1000Hz, accuracy 0.001Hz
Harmonic number 2–20second
phase 0–360The accuracy is 0.1 degree
  1. 2. DC current source
DC current output 0–± 10A / phase, accuracy: 0.5% ± 5mA



  1. 3. AC voltage source
Single phase voltage output (RMS) 0 — 120V / phase, accuracy: 0.2% ± 5mv
Line voltage output (RMS) 0–240V
Phase voltage / line voltage output power 75VA/100VA
frequency range 0 — 1000Hz, accuracy: 0.001Hz
Harmonic number 2–20second
phase 0–360Degree, accuracy: 0.1 degree
  1. 4. DC voltage source
Single phasevoltage output amplitude 0–± 160V, accuracy: 0.5% ± 5mv
Output amplitude of line voltage 0–±320V
Phase voltage / line voltage output power 90VA/180VA
  1. 5. switching value terminal
Switch input terminal 8yes
Air contact 1 — 20 mA, 24 V, internal active output of the device
Potential reversal Passive contact: low resistance short circuit signal

Active contact: 0-250V DC

Switch output terminal 4 pairs, empty contacts, interruption capacity: DC: 0-30V/5A,

AC:0-250V/5A

  1. 6. others
time frame 1ms — 9999s, measuring accuracy: 1ms
Volume and weight of portable series single machine Volume 335 x 168 x 270mm3, about 12.5kg
Power Supply AC220V±20%,50/60Hz,10A

7.Working time of AC current

Working current<10A working hours≤60minute
20A>Working current≥10A working hours≤70S
30A>Working current≥20A working hours≤15S
Working current:30A working hours≤5S
